🥇Leaderboards

Understanding Steam Leaderboards and the Heathen Engineering tool kit

Like what you're seeing?

Support us as a GitHub Sponsor and get instant access to all our assets, exclusive tools and assets, escalated support and issue tracking and our gratitude. These articles are made possible by our GitHub Sponsors ... become a sponsor today!

Introduction

Steam leaderboards are persistent tables with automatically ordered entries. Leaderboards can be used to display global and friend boards in your game and on your community page. Each title can create up to 10,000 leaderboards, and each leaderboard can be retrieved immediately after a player's score has been uploaded.

There is no limit on the number of players a leaderboard supports. Each leaderboard entry contains a score (as an int) and optionally up to 64 ints of detail data stored as a simple array on the entry. The detailed data can be used to store game-specific information about the play session that resulted in the user's leaderboard entry. This data is not sorted or parsed by Steam and is replaced when a new leaderboard entry is created for the user. Attachments can be linked with the leaderboard via the UGC (User Generated Content) feature of Steam.

Leaderboards can be configured such that only a trusted web API call can set the value. This is strongly recommended if you have any concerns over the validity of leaderboard scores. When the leaderboard's write operation is configured as trusted only a server using the Steam Web API and a publisher token can upload scores to the board. If the board is not configured as a trusted write then anyone can upload any score to the board.

Use the Steam Web API to set trusted leaderboard scores

https://partner.steamgames.com/doc/webapi/ISteamLeaderboards#SetLeaderboardScore

Quick Start

First, you need to create your achievements on the Steam Developer portal. https://partner.steamgames.com/

Log into your Steam Developer Portal and access your app's admin page. Look for the Technical Tools section and select the Edit Steamworks Settings option.

From there select the Stats & Achievements > Leaderboards option and create your new boards.

Make note of the value you use in the API Name field. You will use it when working with achievements in code.

Publish

You **MUST** publish your changes in the Steam Developer Portal before they will be accessible via Steam API. In the Steam Developer Portal when you have pending changes you will see a red banner at the top of the screen ... click it and follow the instructions.

Troubleshooting

Upload ignores my value

A common issue when your start is that it may appear that the leaderboard is ignoring the score you upload, or that it only takes scores in the opposite direction you intended.

For example, if you upload 10, then upload 11 it may ignore the 11 but if you upload 9 it will take the 9.

Why?

Steam Leaderboards are configured to sort scores in a particular direction and when you upload a score you are typically doing so as "Keep Best".

board.UploadScore(42,
    ELeaderboardUploadScoreMethod.k_ELeaderboardUploadScoreMethodKeepBest,
    (result, error) =>
    {
        if(!error)
            Debug.Log("Recorded: " + result.m_nScore +
                      "New Rank: " + result.m_nGlobalRankNew);
    });

The "Keep Best" option tells Steam to only record the new value you present ** if ** that value is better than the previous value recorded. This is determined by the "sort order" you configured for the board in the Steam Portal.

How to Fix?

Assuming you have the board configured incorrectly simply update its configuration in the Steam portal and then publish the changes.

You MUST ALWAYS publish changes when making edits in the Steam Portal. It does not apply the moment you make the change in the portal it is a Perforce-based source control system that requires you to publish your changes.

If for some reason you find your board still acts like it's sorted the other way around, this is likely due to an issue seen a few times with Steam's backend services. Submit a support case letting Valve know that your board appears bugged and is not changing its sort direction as it should.

To work around the issue make a new board (with a new name) and set it up with the sort of direction you desire; do not delete the broken board … please … so Valve can review it.

Examples

Get Leaderboard

Assumes targetBoard is a LeaderboardObject or LeaderboardData

C#

//Leaderboard Object will be "got" for you by the initialization process
//For Leaderboard Data we need as its a struct and not a reference we need
//To get its ID before we can use it

//Before we can use a leaderboard we need to get its ID ... not its API Name ... its ID
//The static function takes in the api name and a delegate to be called when the process is completed
//This is an asynchronous method ... a delegate is simply a pointer to a function
//You could give it a named function you defined in your class but far more commonly you use an anonymous function as we have here
LeaderboardData.Get(apiName, (data, ioError) =>
{
    if (!ioError)
    {
        targetBoard = data;
        Debug.Log($"Found {apiName} with ID {targetBoard.id.m_SteamLeaderboard}");

        //At this point you now have the board and do things with it .... see the functions below that give examples of working with the board such as reading and writing data
    }
    else
    {
        Debug.LogError($"An IO error occurred while attempting to read {apiName}");
    }
});

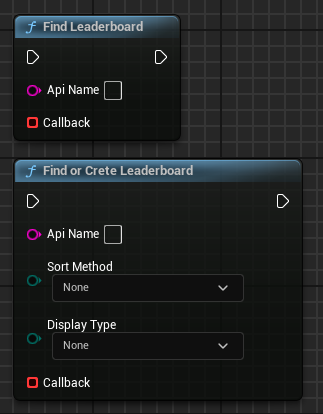

Blueprint

C++

// You will need to create a variable to store the CallResult
// This must be maintained until the CallResult is returned and complete
CCallResult<YourClass, LeaderboardFindResult_t> m_LeaderboardFindResult_t;

// Next call FindLeaderboard storing the handle
SteamAPICall_t handle = SteamUserStats()->FindLeaderboard(StringCast<ANSICHAR>(*board).Get());
// Use the handle with the CallResult created earlier
// Provide a pointer a suitable function to be called when the result
// Completes Valve will invoke the function passing the requested data
m_LeaderboardFindResult_t.Set(handle, this, &YourClass::Callback);

// Example Function to be called by the CallResult delegate
// Note that Unreal runs the Callback loop on a background thread
// This means you will need to create a GameThreadTask to bring the
// Result forwarded to the GameThread
void YourClass::Callback(LeaderboardFindResult_t* Response, bool bIOError)
{
	if (!bIOError)
	{
		int64 boardId = static_cast<int64>(Response->m_hSteamLeaderboard);
		bool found = Response->m_bLeaderboardFound > 0 ? true : false;

		// Execute the delegate on the game thread asynchronously
		FGraphEventRef GameThreadTask = FFunctionGraphTask::CreateAndDispatchWhenReady([this, boardId, found]()
		{
			if (Callback.IsBound())
			{
				UE_LOG(LogTemp, Log, TEXT("Board found and callback invoked"));
				Callback.Execute(boardId, found);
			}
			else
			{
				UE_LOG(LogTemp, Log, TEXT("Board found, no callback to invoke"));
			}
		}, TStatId(), nullptr, ENamedThreads::GameThread);
		GameThreadTask->Wait();
	}
	else
	{
		// Execute the delegate on the game thread asynchronously
		FGraphEventRef GameThreadTask = FFunctionGraphTask::CreateAndDispatchWhenReady([this]()
		{
			if (Callback.IsBound())
				Callback.Execute(0, false);
		}, TStatId(), nullptr, ENamedThreads::GameThread);
		GameThreadTask->Wait();
	}
}

// First create a CallResult of type LeaderboardFindResult_t
// This can be used with both Find and Find or Create
// This must be held in memory until the process is returned
// So you will want to create it as a private variable on some object
// That will not be destroyed.
CallResult<LeaderboardFindResult_t> m_LeaderboardFindResult_t = CallResult<LeaderboardFindResult_t>.Create();

// Call Find or FindOrCreate storing the handle
var handle = SteamUserStats.FindLeaderboard(apiName);
// or
var handle = SteamUserStats.FindOrCreateLeaderboard(apiName, sortMethod, displayType);

// Once you have the handle you can set the CallResult
m_LeaderboardFindResult_t.Set(handle, (results, error) =>
{
    // Handle the result if the error is false
    // You want to store the results.m_hSteamLeaderboard for later use
});

Upload Score

Assumes targetBoard is a LeaderboardObject or LeaderboardData

There are multiple overloads to Upload Scores to a leaderboard, see the class description for a full list.

C#

// Call Upload Score passing in any details and indicating an upload Method
// This is an asynchronous function so the last parameter is a delegate
// That will be run when the process completes
targetBoard.UploadScore(score, details, uploadMethod, (callbackResult, ioError) =>
{
    // Handle the result if ioError is false
});

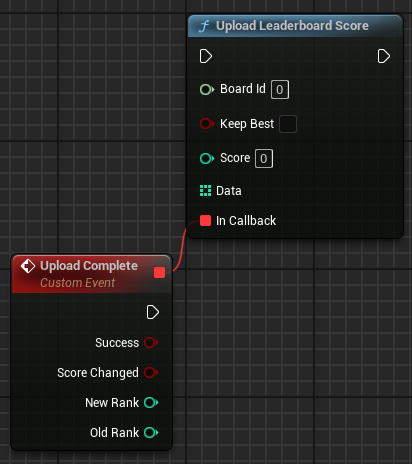

Blueprint

C++

// You will need to create a variable to store the CallResult
// This must be maintained until the CallResult is returned and complete
CCallResult<YourClass, LeaderboardScoreUploaded_t> m_LeaderboardFindResult_t;

SteamAPICall_t handle = SteamUserStats()->UploadLeaderboardScore(board, method, score, data.GetData(), data.Num());
// Use the handle with the CallResult created earlier
// Provide a pointer a suitable function to be called when the result
// Completes Valve will invoke the function passing the requested data
m_LeaderboardScoreUploaded_t.Set(handle, this, &YourClass::Callback);

// Example Function to be called by the CallResult delegate
// Note that Unreal runs the Callback loop on a background thread
// This means you will need to create a GameThreadTask to bring the
// Result forwarded to the GameThread
void YourClass::Callback(LeaderboardScoreUploaded_t* Response, bool bIOError)
{
	// Execute the delegate on the game thread asynchronously
	FGraphEventRef GameThreadTask = FFunctionGraphTask::CreateAndDispatchWhenReady([this, bIOError, Response]()
	{
		if (!bIOError)
		{
			if (Callback.IsBound())
				Callback.Execute(Response->m_bSuccess == 1, Response->m_bScoreChanged == 1, Response->m_nGlobalRankNew, Response->m_nGlobalRankPrevious);
		}
		else if (Callback.IsBound())
			Callback.Execute(false, false, 0, 0);
	}, TStatId(), nullptr, ENamedThreads::GameThread);
	GameThreadTask->Wait();
}

// First create a CallResult of type LeaderboardScoreUploaded_t
// This must be held in memory until the process is returned
// So you will want to create it as a private variable on some object
// That will not be destroyed.
CallResult<LeaderboardScoreUploaded_t> m_LeaderboardScoreUploaded_t = CallResult<LeaderboardScoreUploaded_t>.Create();

// Call upload leaderboard score
var handle = SteamUserStats.UploadLeaderboardScore(boardId, method, score, details, details == null ? 0 : details.Length);

// Once you have the handle you can set the CallResult
m_LeaderboardScoreUploaded_t.Set(handle, (result, error) =>
{
    // Handle the result if the error is false
});

Get User's Entry

Assumes targetBoard is a LeaderboardObject or LeaderboardData

C#

targetBoard.GetUserEntry(detailEntriesCount, (foundEntry, ioError) =>
{
    // Handle the found entry if ioError is false
});

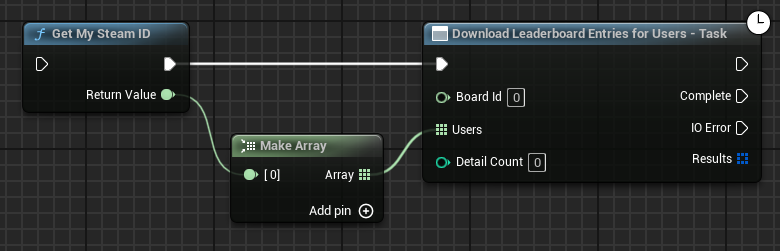

Blueprint

We have Task

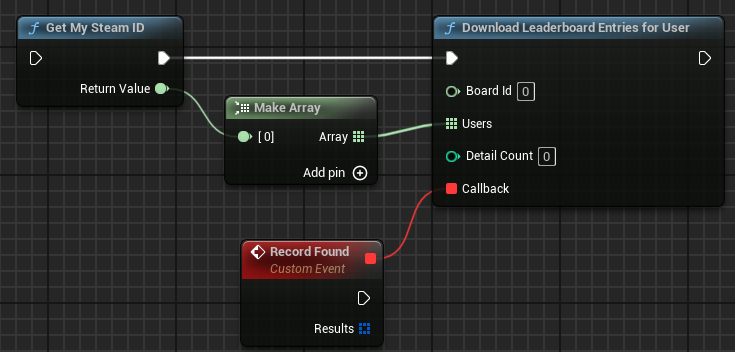

And classic callback style options

C++

// You will need to create a variable to store the CallResult
// This must be maintained until the CallResult is returned and complete
CCallResult<YourClass, LeaderboardScoresDownloaded_t> m_LeaderboardScoresDownloaded_t;

SteamAPICall_t handle = SteamUserStats()->DownloadLeaderboardEntriesForUsers(leaderboard, targetUsers, numUsers);
// Use the handle with the CallResult created earlier
// Provide a pointer a suitable function to be called when the result
// Completes Valve will invoke the function passing the requested data
m_LeaderboardScoresDownloaded_t.Set(handle, this, &YourClass::Callback);

// Example Function to be called by the CallResult delegate
// Note that Unreal runs the Callback loop on a background thread
// This means you will need to create a GameThreadTask to bring the
// Result forwarded to the GameThread
void YourClass::Callback(LeaderboardScoresDownloaded_t* Response, bool bIOError)
{
    	// Execute the delegate on the game thread asynchronously
	FGraphEventRef GameThreadTask = FFunctionGraphTask::CreateAndDispatchWhenReady([this, bIOError, Response]()
	{
		// Handle the results
	}, TStatId(), nullptr, ENamedThreads::GameThread);
	GameThreadTask->Wait();
}

// First create a CallResult of type LeaderboardScoresDownloaded_t
// This must be held in memory until the process is returned
// So you will want to create it as a private variable on some object
// That will not be destroyed.
CallResult<LeaderboardScoresDownloaded_t> m_LeaderboardScoresDownloaded_t = CallResult<LeaderboardScoresDownloaded_t>.Create()

// Call upload leaderboard score
var handle = SteamUserStats.DownloadLeaderboardEntriesForUsers(boardId, new CSteamID[]{ SteamUser.GetSteamID() }, 1);

// Once you have the handle you can set the CallResult
m_LeaderboardScoresDownloaded_t.Set(handle, (results, error) =>
{
    //Handle the results as you see fit
});

Get Entries

Assumes targetBoard is a LeaderboardObject or LeaderboardData

C#

//You have several quality-of-life shortcuts to reading records in different ways
//In all cases the final parameter is a delegate that will be called when the
//process completes and will contain the results found if any.

//Top X number of records
int howMany = 42;
int detailsCount = 0;
targetBoard.GetTopEntries(howMany,
    detailsCount,
    (entriesFound, ioError) =>
    {
        //Handle the entries found if ioError is false
    });

//Get entries for specific users
UserData[] users; //set this to who you want to read for
int detailsCount = 0;
targetBoard.GetTopEntries(users,
    detailsCount,
    (entriesFound, ioError) =>
    {
        //Handle the entries found if ioError is false
    });

//Get entries around the user's entry (includes the user's entry)
int beforeUser = -5;
int afterUser = 5;
int detailsCount = 0;
targetBoard.GetTopEntries(ELeaderboardDataRequest.k_ELeaderboardDataRequestGlobalAroundUser,
    beforeUser,
    afterUser,
    detailsCount,
    (entriesFound, ioError) =>
    {
        //Handle the entries found if ioError is false
    });

//Get all your friend's entries
int detailsCount = 0;
targetBoard.GetTopEntries(ELeaderboardDataRequest.k_ELeaderboardDataRequestFriends,
    0,
    0,
    detailsCount,
    (entriesFound, ioError) =>
    {
        //Handle the entries found if ioError is false
    });

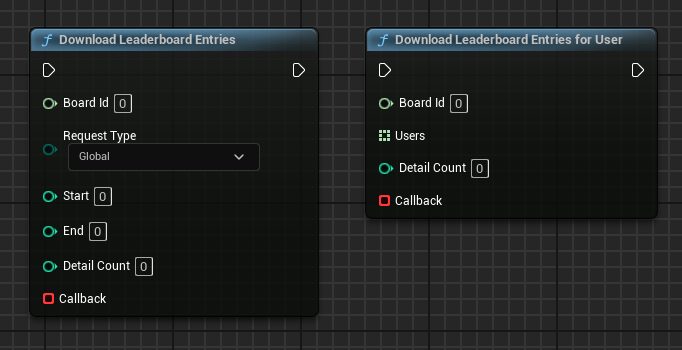

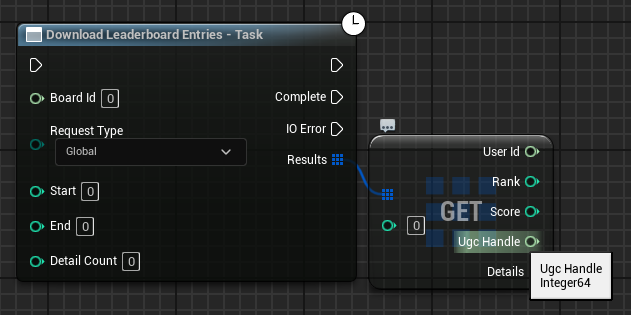

Blueprint

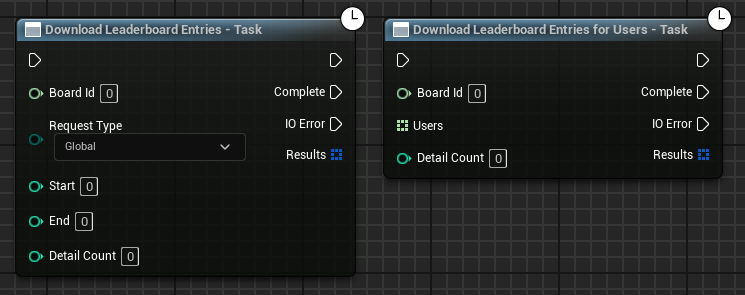

We have both Tasks

And classic Callback style options

C++

// You will need to create a variable to store the CallResult
// This must be maintained until the CallResult is returned and complete
CCallResult<YourClass, LeaderboardScoresDownloaded_t> m_LeaderboardScoresDownloaded_t;

//Next make the call ... either to "for users"
SteamAPICall_t handle = SteamUserStats()->DownloadLeaderboardEntriesForUsers(leaderboard, targetUsers, numUsers);
// or not
SteamAPICall_t handle = SteamUserStats()->DownloadLeaderboardEntries(leaderboard, dRequest, start, end);
//Both use the same CallResult type so this is the only difference

// Use the handle with the CallResult created earlier
// Provide a pointer a suitable function to be called when the result
// Completes Valve will invoke the function passing the requested data
m_LeaderboardScoresDownloaded_t.Set(handle, this, &YourClass::Callback);

// Example Function to be called by the CallResult delegate
// Note that Unreal runs the Callback loop on a background thread
// This means you will need to create a GameThreadTask to bring the
// Result forwarded to the GameThread
void YourClass::Callback(LeaderboardScoresDownloaded_t* Response, bool bIOError)
{
    	// Execute the delegate on the game thread asynchronously
	FGraphEventRef GameThreadTask = FFunctionGraphTask::CreateAndDispatchWhenReady([this, bIOError, Response]()
	{
		// Handle the results
	}, TStatId(), nullptr, ENamedThreads::GameThread);
	GameThreadTask->Wait();
}

// First create a CallResult of type LeaderboardScoresDownloaded_t
// This must be held in memory until the process is returned
// So you will want to create it as a private variable on some object
// That will not be destroyed.
CallResult<LeaderboardScoresDownloaded_t> m_LeaderboardScoresDownloaded_t = CallResult<LeaderboardScoresDownloaded_t>.Create()

//Next we need to set a "start" and "end"
//Exactly what these do depends on the request type
//It is generally self-explanatory, for example, if you want
//To get the top 10 results then you want to start at 0 and end at 10

// Call upload leaderboard score
var handle = SteamUserStats.DownloadLeaderboardEntries(boardId,
                ELeaderboardDataRequest.k_ELeaderboardDataRequestGlobal, //type
                0 // Start
                10 //End
                );

// Once you have the handle you can set the CallResult
m_LeaderboardScoresDownloaded_t.Set(handle, (results, error) =>
{
    //Handle the results as you see fit
});

Attach File

Assumes targetBoard is a LeaderboardObject or LeaderboardData

C#

//Note the file will need a name but this is just the name of the file for the temporary upload
//So this is the name that will be in the user's Remote Storage, once attached we can remove it to save space.
//we like to us the same name all the time "tempFile" and we do not bother removing it instead we just let it
//overwrite each time as a means to hold the space for future attachments
targetBoard.AttachUGC("tempFile", fileData, (ugcResult, ugcIoError) =>
{
    if (!ugcIoError)
    {
        if (ugcResult.Result == Steamworks.EResult.k_EResultOK)
            Debug.Log($"Attached file data to user entry on board {apiName}");
        else
            Debug.LogError($"Failed to attach file data to user entry on board {apiName}, Response Result = {ugcResult.Result}");
    }
    else
    {
        Debug.LogError($"Failed to attach file data to user entry on board {apiName}, IO Error!");
    }
});

Blueprint

This is a 3-step process

Upload data to attach

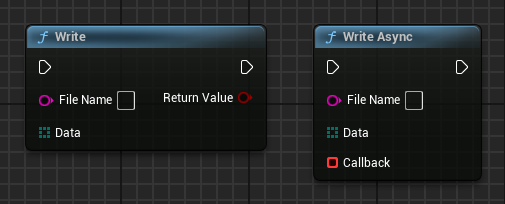

You can use Remote Storage Write or Write Async to do this

Mark the newly created file as "shared"

Attach the resulting Ugc Handle to the board

C++

As with the blueprints, this will require 3 steps each is asynchronous

// First we need to create our 3 CallResult entries
// File Write ASync Complete
CCallResult<YourClass, RemoteStorageFileWriteAsyncComplete_t> m_RemoteStorageFileWriteAsyncComplete_t;
// File Share Complete
CCallResult<YourClass, RemoteStorageFileShareResult_t> m_RemoteStorageFileShareResult_t;

// Next we need to upload our file data
// Assuming
FString name; // The file name
TArray<uint8> data; // The data to upload

// Then we call the FileWriteAsync
SteamAPICall_t handle = SteamRemoteStorage()->FileWriteAsync(StringCast<ANSICHAR>(*name).Get(), data.GetData(), data.Num());
// And set the handle
m_RemoteStorageFileWriteAsyncComplete_t.Set(handle, this, &YouClass::WriteComplete);

// In your WriteComplete function
// This uses the same file name as before
void YouClass::WriteComplete(RemoteStorageFileWriteAsyncComplete_t* result, bool ioError)
{
    // Share the new file
    SteamAPICall_t handle = SteamRemoteStorage()->FileShare(StringCast<ANSICHAR>(*name).Get());
    m_RemoteStorageFileShareResult_t.Set(handle, this, &YourClass::ShareComplete);
}

// This requires you to know the Board ID you want to attach the file to
// This is the same ID you got when you "found" or "created" the board
// Now in your ShareComplete funciton
void YourClass::ShareComplete(RemoteStorageFileShareResult_t* result, bool ioError)
{
    // Attach the share handle to the target board
    SteamAPICall_t handle = SteamUserStats()->AttachLeaderboardUGC(boardId, result->m_hFile);
    m_LeaderboardUGCSet_t.Set(handle, this, &YourClass::AttachComplete);
}

void YourClass::AttachComplete(LeaderboardUGCSet_t* result, bool ioError)
{
    // The process is now complete
}

// First create your CallResult to catch the results we will need

// This call result is invoked when file write to remote storage is complete
CallResult<RemoteStorageFileWriteAsyncComplete_t> m_RemoteStorageFileWriteAsyncComplete_t = CallResult<RemoteStorageFileWriteAsyncComplete_t>.Create()

// This call result is invoked when the file is shared and we have a share ID
CallResult<RemoteStorageFileShareResult_t> m_RemoteStorageFileShareResult_t = CallResult<RemoteStorageFileShareResult_t>.Create();

// This call result is invoked when the shared file ID is attached to the board
CallResult<LeaderboardUGCSet_t> m_LeaderboardUGCSet_t = CallResult<LeaderboardUGCSet_t>.Create();

// Assuming
string file; // the name of the file to write
byte[] data; // the data to write to the file

// Call FileWriteAsync
var handle = SteamRemoteStorage.FileWriteAsync(file, data, (uint)data.Length);
// And set the handle to a valid delegate
m_RemoteStorageFileWriteAsyncComplete_t.Set(handle, WriteComplete);


// In the WriteCompleteis where we will "share" the file
void WriteComplete(RemoteStorageFileWriteAsyncComplete_t result, bool ioError)
{
    handle = SteamRemoteStorage.FileShare(file);
    m_RemoteStorageFileShareResult_t.Set(handle, ShareCompelte);
}

// Now in the ShareComplete we can attach the shared ID to the board
void ShareComplete(RemoteStorageFileShareResult_t result, bool ioError)
{
    var handle = SteamUserStats.AttachLeaderboardUGC(boardId, result.m_hFile);
    m_LeaderboardUGCSet_t.Set(handle, (r, e) =>
    {
        // Work is done, the data is now uploaded, shared and attached to the board
    });
}

Get Attached File

Assumes targetBoard is a LeaderboardObject or LeaderboardData

This assumes you already have a LeaderboardEntry you want to read the attachment for. and it assumes the data you are reading is serialized from a serializable object named "SomeObject"

C#

// Assuming
LeaderboardEntry entry;

entry.GetAttachedUgc<ExampleSerializableDataForAttachment>((dataFound, ioError) =>
{
    if(!ioError)
    {
        //Data Found is your attachment if any. Its up to you to check and see if that is a default value or actually set data
        //how you do that depends on what kind of object it is ... for a struct you should always implement the IEquitable, IComparable and overloads for == and != operators
    }
});

Blueprint

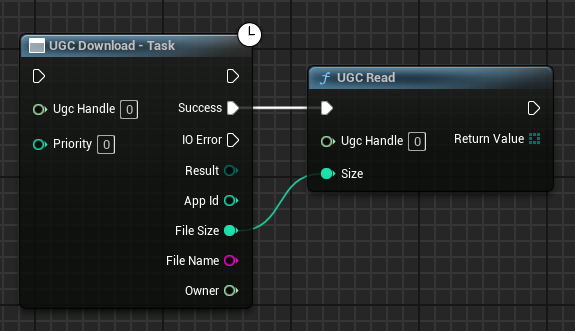

You will need the UGC Handle for the entry you want to read ... you can get this from the results of a Download Leaderboard Entries

With that, you can then download and then read the data

C++

// Create a CallResult for the RemoteStorageDownloadUGCResult_t
CCallResult<YourClass, RemoteStorageDownloadUGCResult_t> m_RemoteStorageDownloadUGCResult_t;

// This assumes you have the leaderboard entry you want to read an
// attachment for ... you can see how to get a leaderboard entry
// from the Get Entries example above

// So this assumes
LeaderboardEntry_t entry; // from the Get Entries
// We will be using the UgcHandle from the entry
UgcHandle_t ugcHandle = entry.m_hUGC;

// Start the download
SteamAPICall_t handle = SteamRemoteStorage()->UGCDownload(ugcHandle, 0);
m_RemoteStorageDownloadUGCResult_t.Set(handle, this, &YourClass::DownloadComplete);

// Now in your download complete
void YourClass::DownloadComplete(RemoteStorageDownloadUGCResult_t* result, bool ioError)
{
    // We can use the same handle and get the data from this file
    TArray<uint8> fileData;
    fileData.SetNumUninitialized(result->m_nSizeInBytes);
    // this will populate the fileData with the data read
    int dataRead = SteamRemoteStorage()->UGCRead(ugcHandle, fileData.GetData(), result->m_nSizeInBytes, 0, EUGCReadAction::k_EUGCRead_ContinueReadingUntilFinished);
}

// This assumes you have the leaderboard entry you want to read an
// attachment for ... you can see how to get a leaderboard entry
// from the Get Entries example above

// So this assumes
LeaderboardEntry_t entry;
// We will be using the UgcHandle from the entry
UgcHandle_t ugcHandle = entry.m_hUGC;

// Next we need to download this UGC Handle
// To do that we will need to use a CallResult

// This is invoked when the download is completed
CallResult<RemoteStorageDownloadUGCResult_t> m_RemoteStorageDownloadUGCResult_t = CallResult<RemoteStorageDownloadUGCResult_t>.Create();

// Once we have this declared we can set it such as
var handle = SteamRemoteStorage.UGCDownload(ugcHandle , priority);
m_RemoteStorageDownloadUGCResult_t.Set(callbackHandle, DownloadComplete);

// Now in your DownloadComplete handler, you can read the byte[] data of that file
void DownloadComplete(RemoteStorageDownloadUGCResult_t result, bool ioError)
{
    // We call first with empty buffers to get the size of the file
    SteamRemoteStorage.GetUGCDetails(ugcHandle, out _, out _, out int size, out _);
    // We use that size to create a proper buffer
    var results = new byte[size];
    // Now we call again with a properly allocated buffer
    SteamRemoteStorage.UGCRead(handle, results, size, 0, EUGCReadAction.k_EUGCRead_ContinueReadingUntilFinished);

    // results is not a byte[] containing the file data
}

PreviousLaunch NextAdvanced Profiles

Last updated 1 year ago
